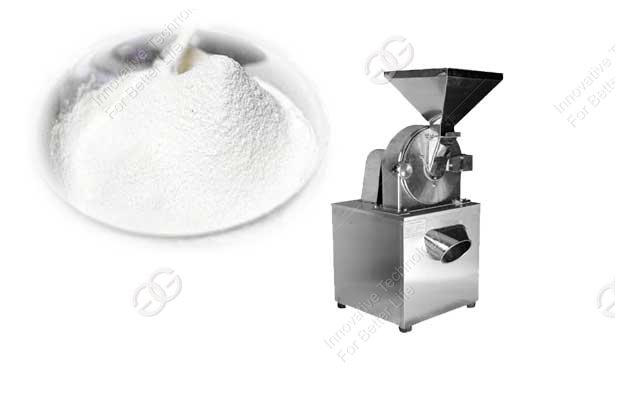

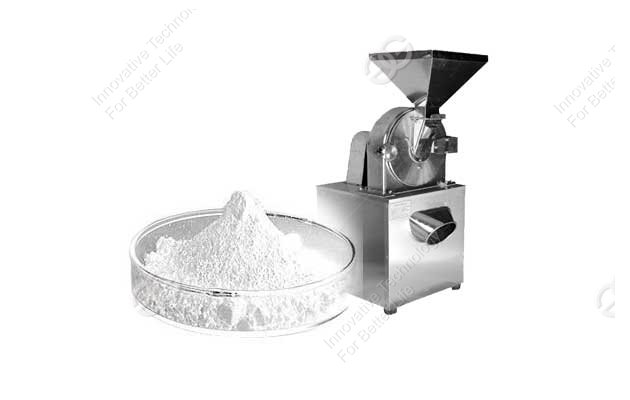

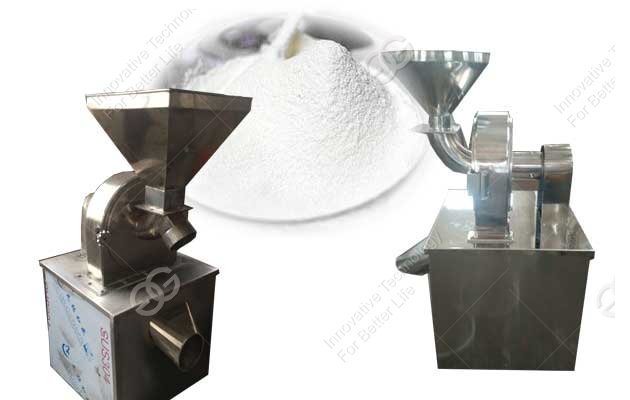

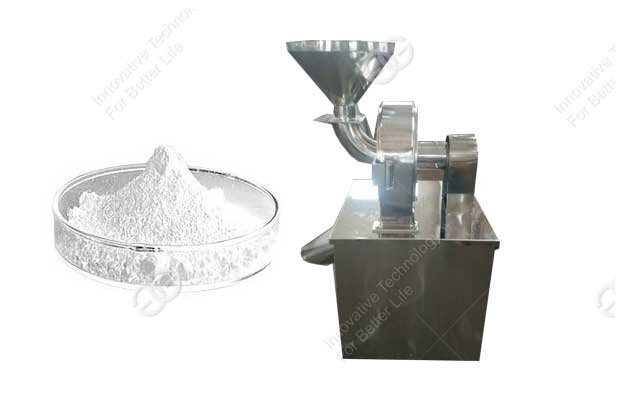

Multifunction sugar grinding machine is mainly used to grind chemical industry, medicine,food,condiment,resin powder,be-powder etc different kinds of materials.
The universal crushing unit consists of a pulverizer and a aggregate box. Suitable for pharmaceutical, chemical, food and other industries, crushing dry brittle materials, is a new generation of pulverized equipment, which is low in softening point and high viscosity material.
This unit and the crushing material contact parts are all made of stainless steel materials manufacturing, have good corrosion resistance, frame around all closed, easy cleaning, casing wall all machining, surface level off, smooth. Make the production of medicine, food, chemical industry more accord with the national "GMP" standard. The unit is currently the exclusive production in China.
Working principle:
The machine pulverization principle hammer type return wind high-speed smash. , material can be directly from the eduction in grinding chamber, the discharging mouth, the general material should pass the cotton bags to collect after crushing, after crushing materials collected in the bag, the air out of a bag of tiny hole, will not be fine powder, thereby not waste, no pollution effect. The size of the particle is determined by the screen changing of different Numbers.
The structure is simple, strong and stable, and the material is fast, uniform and effective. The machine is all stainless steel materials, (grinding groove) within the case all tooth surface precision machining so as to achieve a smooth, easy to clean, changed the ordinary grinder wall roughness, easy, difficult to clean up the phenomenon of accumulated powder, production of food, medicine, chemical industry and so on can meet the national
standards, to meet the GMP health requirements.
We also have spice grinding machine.
standards, to meet the GMP health requirements.
We also have spice grinding machine.
| Model | GG--20B-C | GG-30B-C | GG40B-C | GG60B |
| Capacity(kg/h） | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-200 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 | 680 |
