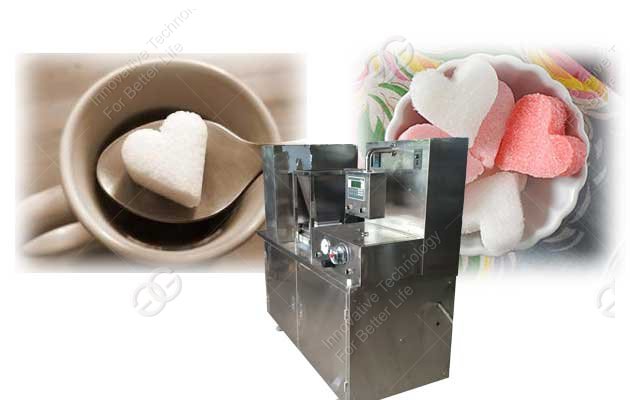

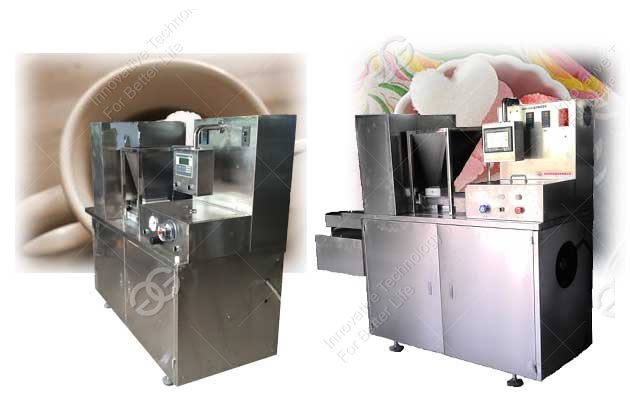

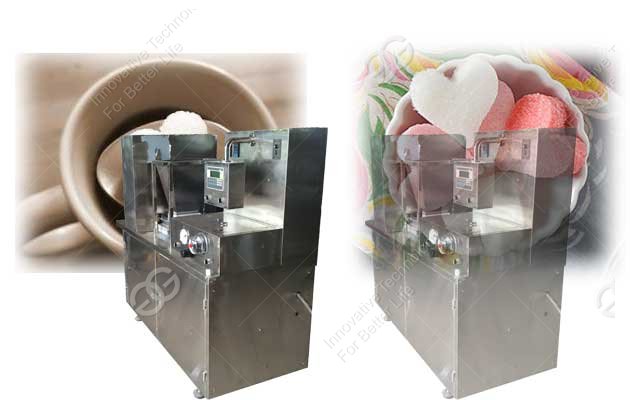

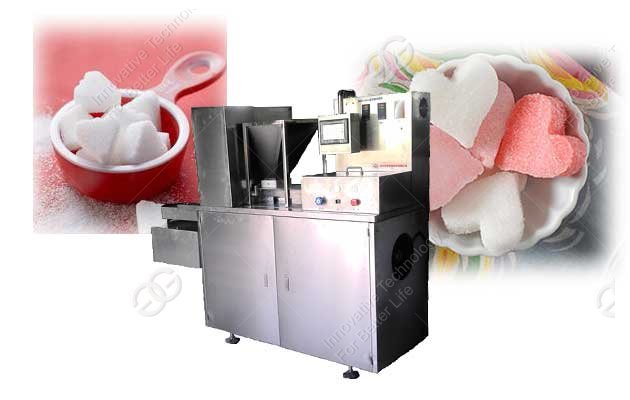

Multi-function cube sugar making machine is used to making diamond shape,heart shape,flower shape and other many different specifications sugar.
The cube sugar making production line can making many irregular shape cube sugar, the cube sugar forming machine mold can be customized according to customer sugar samples.all the machine is made of high quality stainless steel, conforms to food standards and long service life.
The cube sugar forming machine can making many different size and shape cube sugar by change molds (the mold can be customized according to customer demand). The sugar can be packing into carton or bags, we have various sugar cube packing machine for your choose.the machine have reliable performance,simple construction, stable operation,long service life,zero repair rate,is your best choice.
Advantages:
1.High quality to making many irregular shape cube sugar.the sugar forming machine mold can be customized according to customer sugar samples.
2.By changing the molds,this machine is able to produce various shape of high quality sugar cube such as square sugar,heart-shaped sugar and special shape sugar cube.
3.High automatic,stand-alone machine can be controlled separately,simple operation and easy maintenance.
| Equipment Name | Detailed Specifications |
| Sugar Crushing Machine |
GG-Y1500 Tank capacity:1500g Capacity: 20-35kg/h Grinding fineness:80-300mesh Power:3.5kw 220V Dimension:300*250*450mm Weight:20kg |
| Mixed Spiral Feeding Machine |
Model: GG-SG Function: mixing and automatic feeding Motor power: 3.85kw Discharge port from the ground: 1700mm Dimension: 500*500*1650mm Weight: 140kg |
| Sugar Making Machine |
Model: GGF-20B Capacity:10-60kg/h Power:3kw,380V/50Hz Dimension:1650*650*1650mm Weight:600kg PLC control, man-machine interface. |
| Tablet Linkage Conveyor |
Model: GGS-2 Function: Linkage & Transmission Efficiency: 0-10m3/min Air pressure: 0.3-0.5Mpa Dimension: 1300*700*1000mm Weight: 60kg |
| Infrared Drying Tunnel |
Model: GGH-3 Efficiency: 0-10m3/min Power: AC380V50Hz 2KW*3 Dimension: 1900*700*1150mm Weight: 90kg*3 |
| Cooler Machine |
Model: GGQ-1 Function: Cooling Efficiency: 0-10m3/min Dimension: 1900*700*700mm Weight: 60kg |
