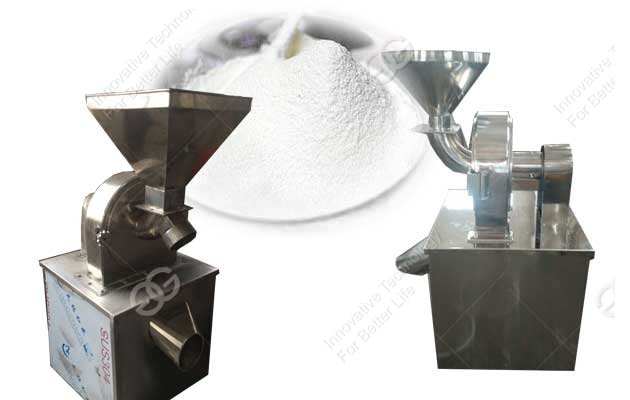

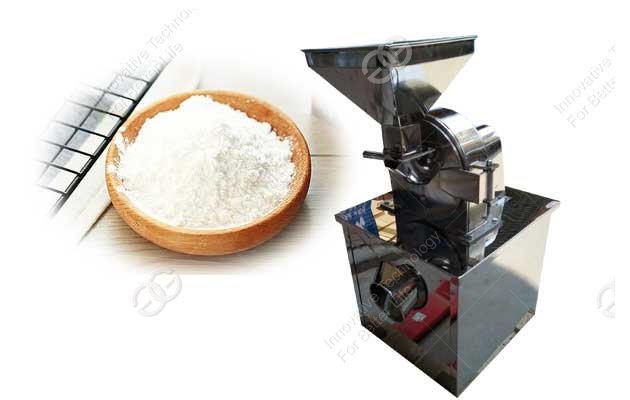

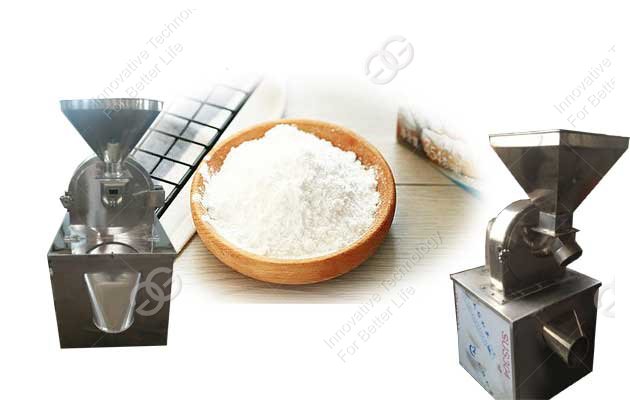

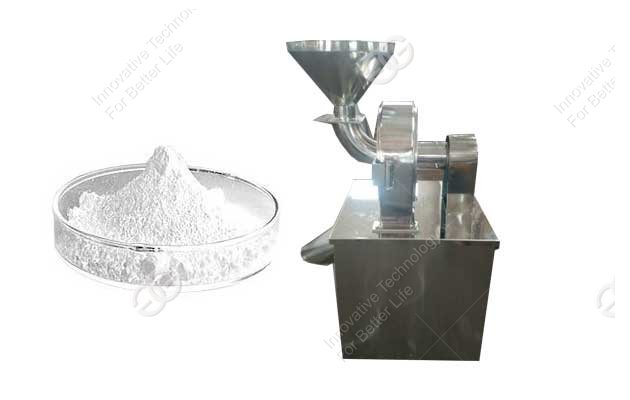

White sugar pulverizer is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. The hard grinding material processing, including plastic, copper pieces, Chinese herbal medicine, rubber, etc, can also serve as micro pulverizer, superfine mill as supporting equipment before processing. It can effectively reduce the noise of working noise. The machine is equipped with the cooling device, which reduces the temperature of the machine, and the work is more stable. The machine speed is 5000 RPM. The machine is made of Icr18Ni9Ti stainless steel material, which has a strong corrosion resistance and corrosion resistance. It is suitable for processing advanced and corrosive materials. The machine adopts the impactor crushing method, the material into the crushing chamber, after six activities by high-speed rotating hammer body, collisions and crushed by the gear ring and material, crushed material with the help of the airflow, through mesh into powder bag, leaving no residue. High efficiency, low noise, reliable performance and product quality, safe operation, low quality of medicine and low loss.
Working principle:
The universal pulverizer USES the active toothed disc and the high-speed relative motion of the fixed tooth disc, which can crush the crush of the crushed objects through the tooth impact, friction and the impact of the material. This machine of simple structure, strong, stable operation, crushing effect is good, the crushed material can directly by the host grinding cavity vent, the particle size can be obtained by changing different aperture of mesh, while the machine for stainless steel. Casing wall all the machined surface smooth, changed the previous machine wall roughness, the phenomenon of accumulated powder and the production of medicine, food, chemical and other more in line with national standards, to suit the requirements of GMP.
Universal mill material from the hopper into the crushing chamber, the blade and the impact of the cutter holder, rotating and stationary knife cut pieces at the same time, due to the effect of rotating centrifugal force, automatic material flowing from the exit.
We also have sugar grinder machine.
We also have sugar grinder machine.
| Model | GG--20B-C | GG-30B-C | GG40B-C | GG60B |
| Capacity(kg/h） | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-200 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 |
680 |
