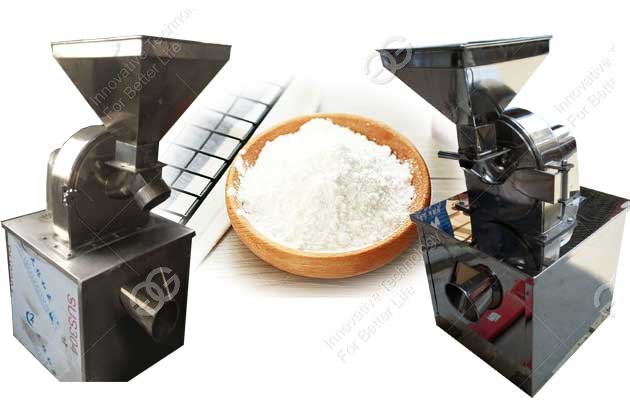

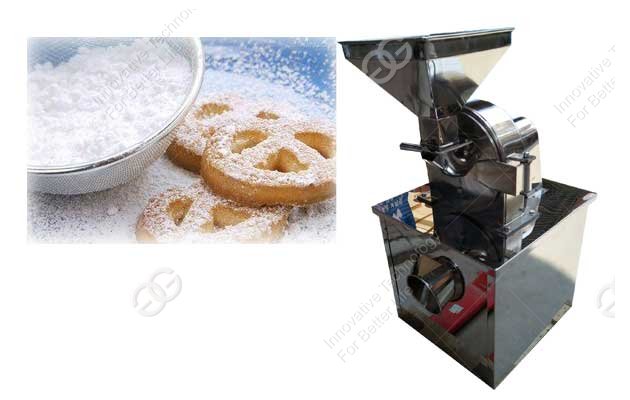

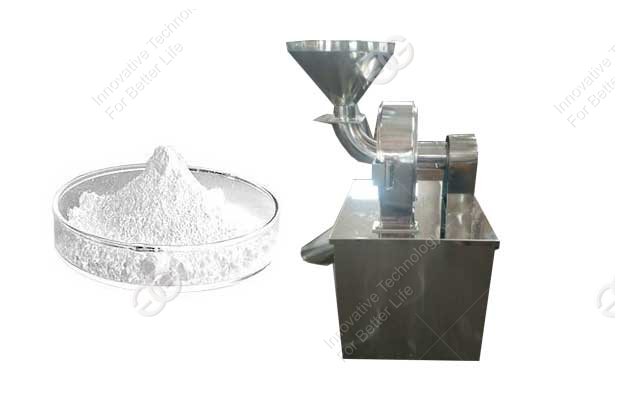

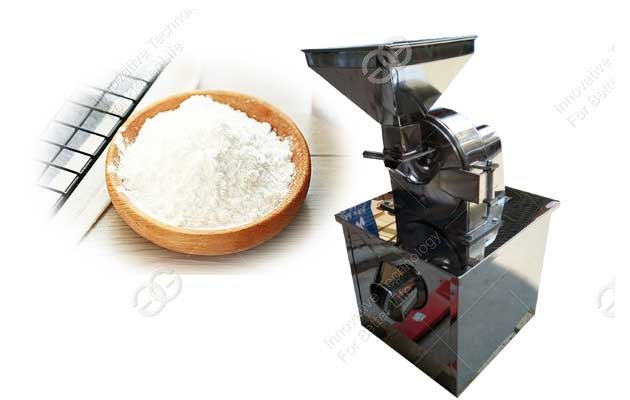

White sugar powder making machine is used for pharmaceutical, chemical, metallurgical, food, construction and other industries. Processing of hard and difficult to smash the material, including plastic, copper, Chinese herbal medicine, rubber, etc. crushed, but also as a micro-grinder, ultra-fine grinding machine processing equipment before the process. It uses a fully enclosed silencer structure, which can effectively reduce the working noise. The machine installed in the cooling device, so that the machine temperature is reduced, work more smoothly, the machine motor speed 5000 r / min. The machine is made of Icr18Ni9Ti stainless steel, with strong wear and corrosion resistance, suitable for processing advanced and corrosive materials. The machine uses the impact of crushing method, the material into the crushing chamber, the high-speed rotation of the six activities of the impact of the hammer, the ring and the material collide with each other and crushed, crushed material with the help of air, through the sieve into the Sheng Powder bag, leaving no residue. With high efficiency, low noise, work performance and product quality reliable, safe operation, drug hygiene and loss of small advantages.
Working principle:
Universal crusher using the activities of the tooth plate and fixed gear see the high-speed relative movement, so that the crushed by the impact of the teeth, friction and the impact of the material and other comprehensive effects of crushing. The machine structure is simple, strong, smooth operation, crushing effect is good, the crushed material can be directly discharged from the host grinding chamber, the size of the size of the screen through the replacement of different diameter mesh screen, the other machine for the whole stainless steel. All the inner walls of the chassis are machined to smooth the surface, changing the roughness of the previous models, accumulating powder, making the production of pharmaceuticals, foodstuffs and chemical products more in line with national standards and meeting the requirements of GMP
The material of the universal crusher is fed into the crushing chamber by the hopper, and the cutting and cutting of the knife and the cutter are simultaneously cut and pulverized. The material is automatically discharged from the outlet due to the centrifugal force.
| Model | GG--20B-C | GG-30B-C | GG40B-C | GG60B |
| Capacity(kg/h） | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-200 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 |
680 |
