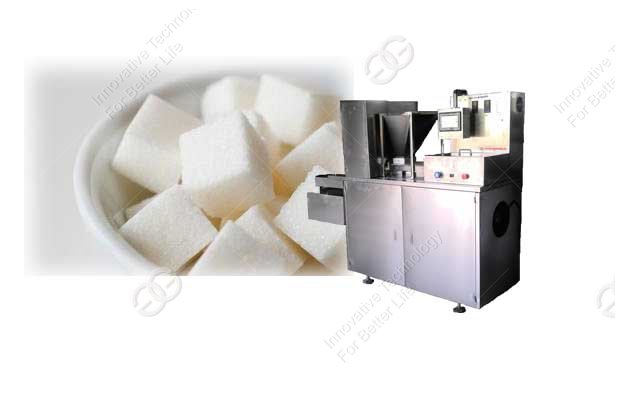

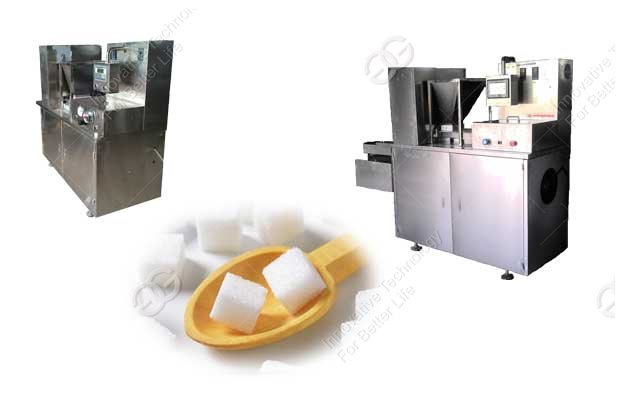

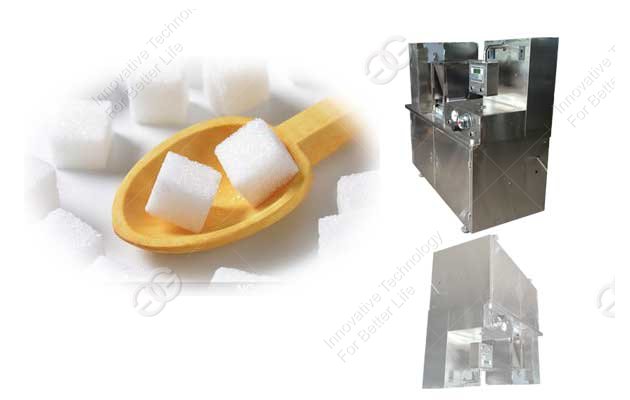

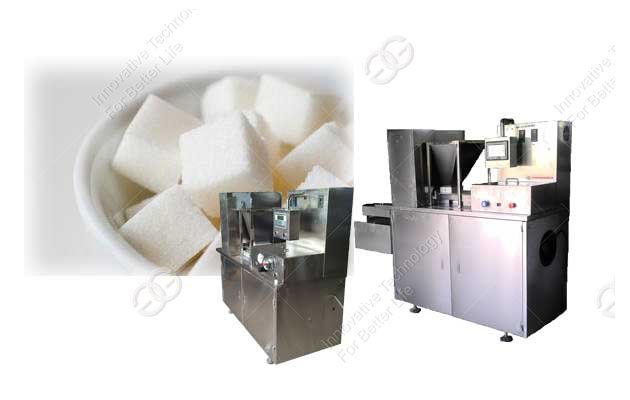

Lump sugar making machine is mainly used to making different shapes and size sugar.
Lump sugar making machine can achieve automatic rotation,automatic frequency control and continuous briquetting.and the sugar lump making machine is mainly applied in the briquetting of sugar with cube shapes. It has two specifications of 16*16*13mm and 16*16*15mm. The equipment is applied in the briquetting of sugar particles with less than 19% water and 100% sugar.
We also provide whole complete cube sugar processing line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.
We also have cubic sugar making mchine.
We also have cubic sugar making mchine.
| Model | GGF-80 | GGF-120 | GGF-160 | GGF-200 | ||
| Number of the die holes | 80pcs | 120pcs | 160pcs | 200pcs | ||
| Dimension of the holes | 16*16*13mm (18*18*12mm) Or made-to-measure. | |||||
| Largest output | 200kg/h | 300kg/h | 400kg/h | 500kg/h | ||
| Motor power |
3.0KW 380V/50Hz |
5.5KW 380V/50Hz |
5.5KW 380V/50Hz |
7.5KW 380V/50Hz |
||
| Sugar weight | More than: 4g, 5g, 6g, 7g, 13g etc | |||||
|
Dimension (mm) (L*W*H) |
1500*600*1500 | 1550*620*1500 | 1700*650*1600 | 2000*700*1700 | ||
| Weight | 600kg | 620kg | 660kg | 700kg | ||
