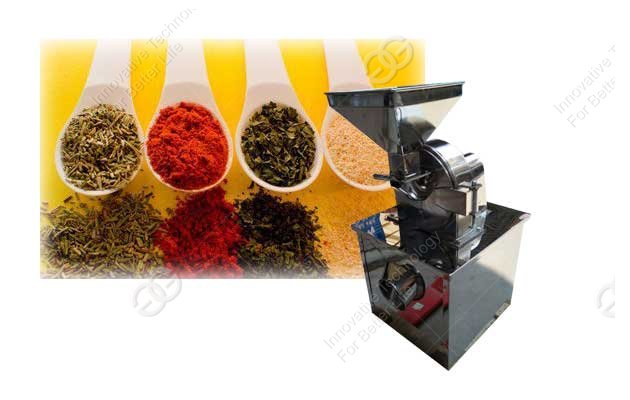

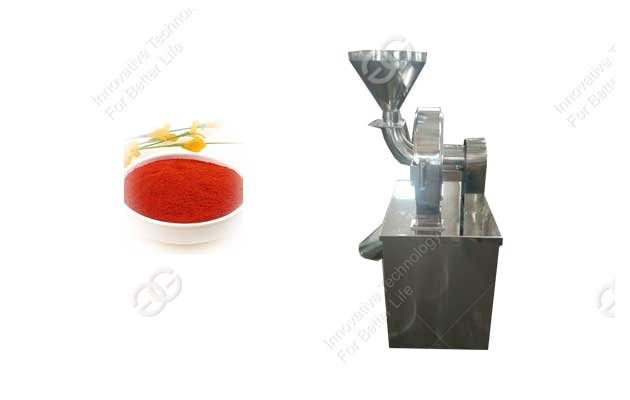

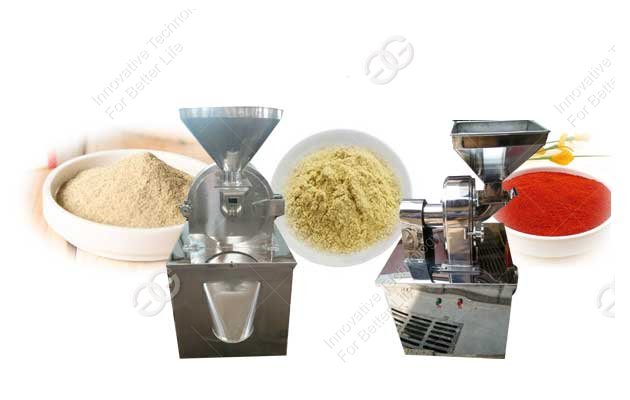

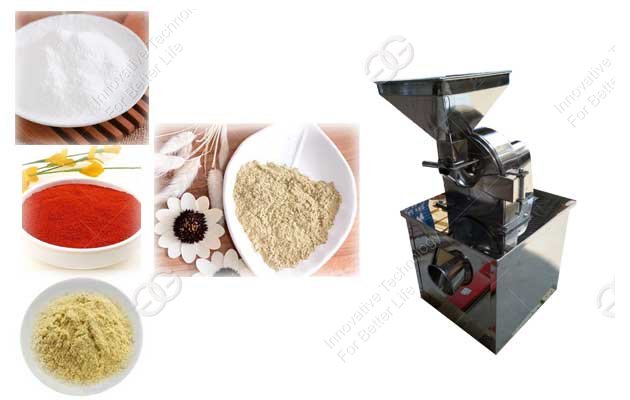

This condiment grinding machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
Such as: grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.
Because of the shearing and impact principle, the material can be crushed in all kinds of states.
The mechanical design according to national GMP standard management, the material is made of stainless steel, beautiful appearance, portability of flexibility, low energy consumption and high yield, low noise, convenient operation.
Working principle:
The crusher uses fixed gear disc, and the rotating tooth is mutually shearing and impacting, which can achieve rapid grinding in the high-speed running of the rotating gear disc.
| Model | GG--20B-C | GG-30B-C | GG40B-C | GG60B |
| Capacity(kg/h） | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-200 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 |
680 |
